Features of Stabilizer Yoritsu

Although various efforts have been made by the electricity companies, the problem of stable voltage and better still have difficulty in providing to its customers in industry, hospitals, telecommunications, information technology and housing. Voltage fluctuations are also influenced by external invoices as:The addition of excess electricity network, the industry load fluctuation, unbalanced phase, electric equipment causing harmonic and surge. Yoritsu stabilizer which has experienced 20 years by adopting technologies from Japan and Spain offering New Generation of Digital with the type of MDI for a single Phase Digital Mono and TDI for Digital Three Phase Three.

Building Characteristics :

• Insulated Class E for max. temperature 75°C with ambient temperature 40°C
• Core are made of Grain Oriented Silicon Steel with low iron loss. Type M4 (Japan), width (0.27mm)
• Grain Oriented Silicon Steel are anealing on 750°-800° C within 12 hours
• AC/DC Servo Motor (Ex. Japan) with high speed intensity and no noise

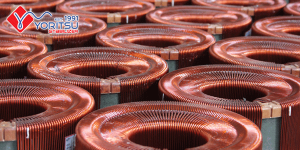

• Winding are made of high quality Copper , Thermal Standard 180°C
• Bakelite print plate are made of slot that help CNC machine get perfect precision

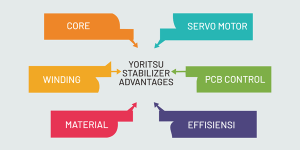

Features :

1. Digital Visualization of the output voltage
2. CNC Winding machines to ensure consistency in precision and tension strength
3. Adjustable PCB electronic output with accuracy 1%, 2%,3%,4%
4. High Reliability/ MTTR
5. A heavy duty high speed low noise AC-DC servo motor
6. Robust constructions, admitting over-loads up to 1000% the nominal
7. Stable & accurate output voltage
8. High efficiency > 98%, which means less maintenance cost
9. Optional over voltage: alarming, automatic cut-off

Yoritsu Digital Mimic Control

1. V/A SELECTOR SWITCH
2. OUTPUT VOLT METER
3. OUTPUT AMPERE METER
4. INPUT LED
5. OUTPUT LED
6. FAILURE LED
7. OUT OF RANGE  LED
8. ADJUSTABLE OUTPUT VOLT
9. UP LED
10. UP PUSH BUTTON
11. DOWN LED
12. DOWN PUSH BUTTON
13. AUTOMATIC LED
14. AUTO-MANUAL SELECTOR SWITCH
15. MANUAL LED.
